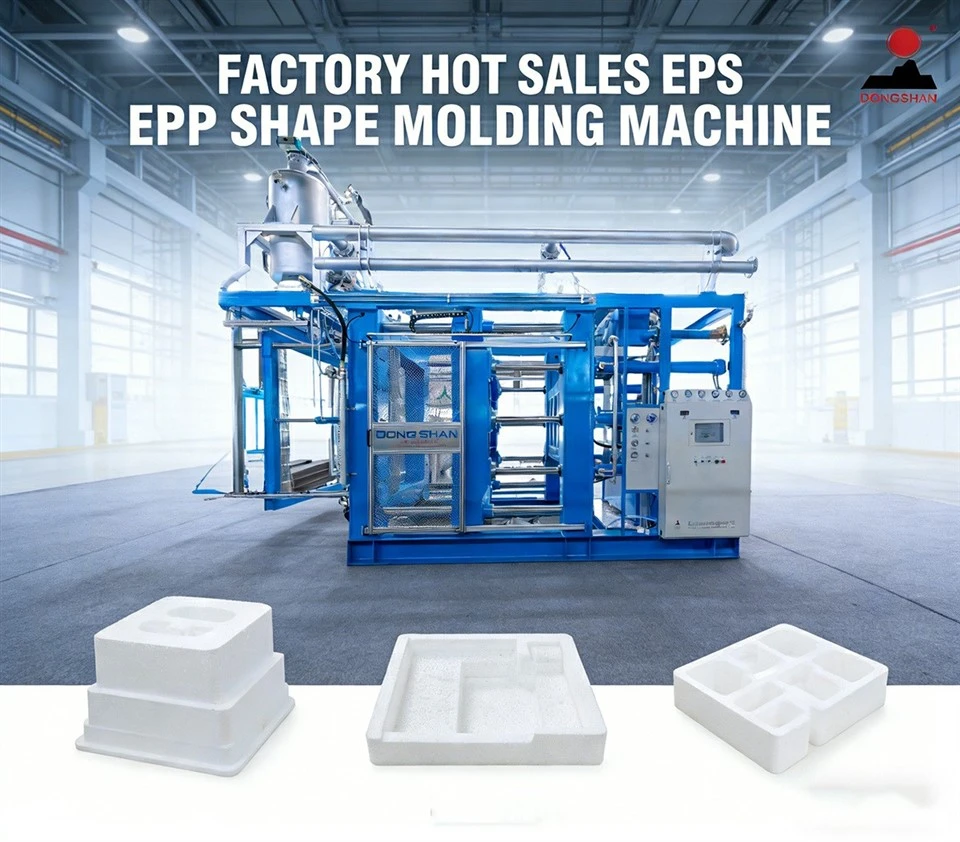

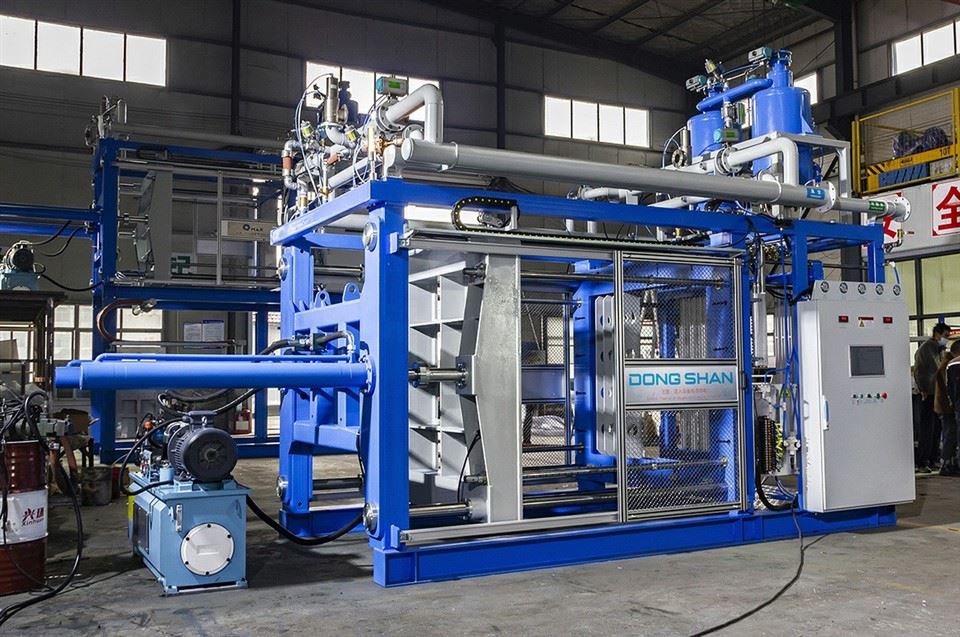

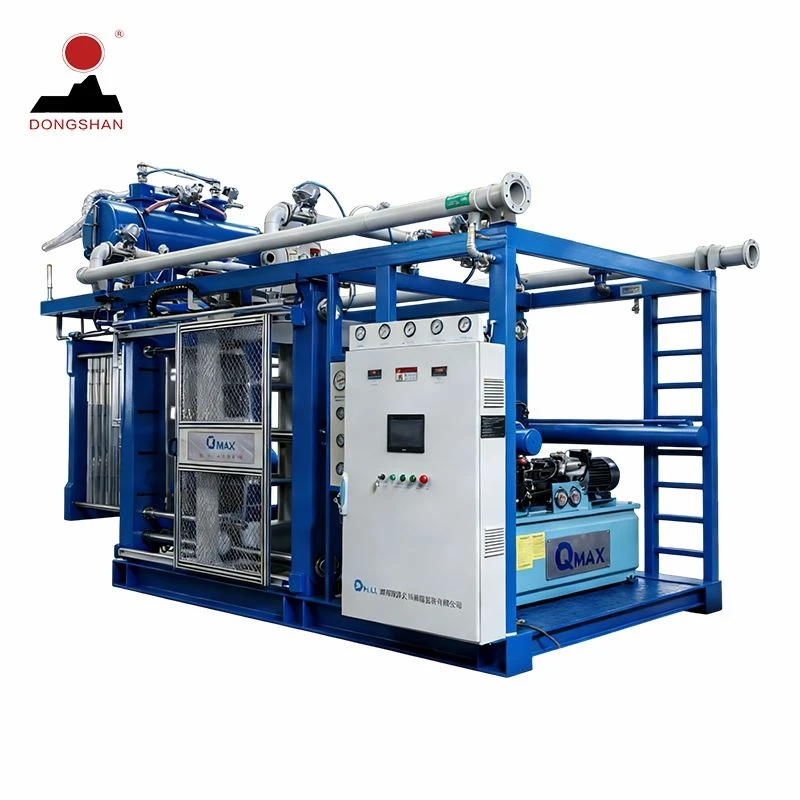

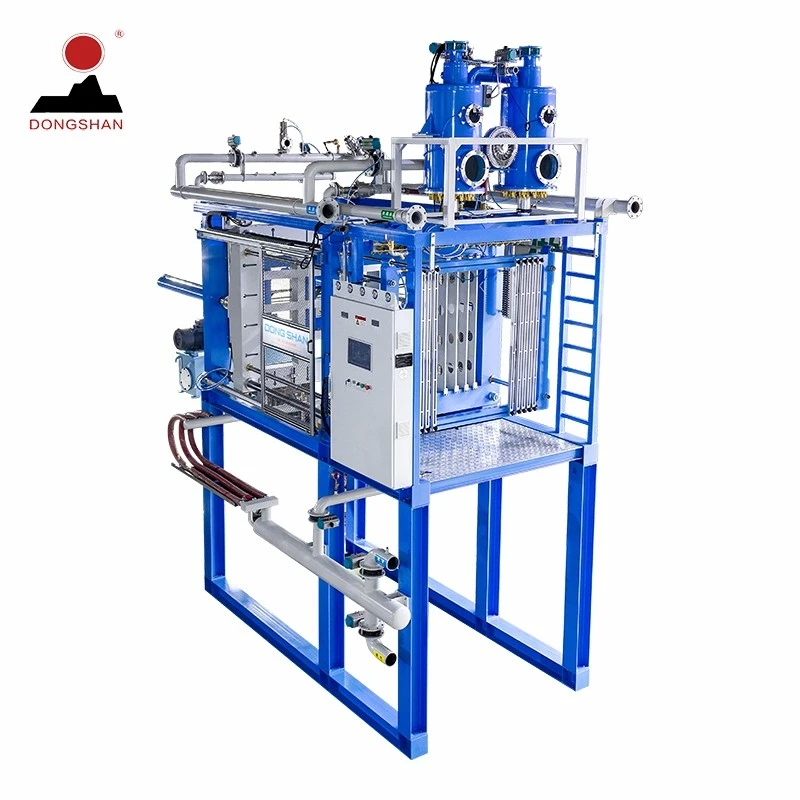

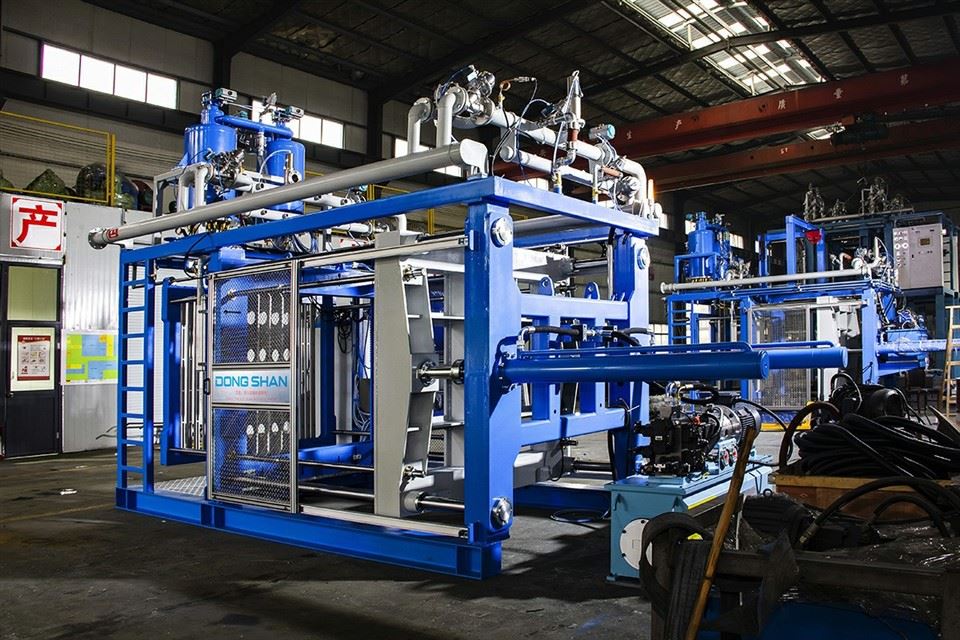

Polystyrene Ua Npuas Ncauj Mould
Mokd Ncej Dimerslons: 1530 × 1330 mm
Tsheb qhov rai SLze: 1450 × 1250 mm
Efecfve Moldng Cheeb Tsam: 1300 × 1100 mm
Masmum Prodc Helght: 400 mm
Srgle tshuab nqus tsev twj: 7.5 Kw
Ib lub tshuab fais fab: 21.5 Kw
Qhov Loj: 5500 × 3000 × 3700 L × W × H
Ib Lub Tshuab Welgt: 13T
Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm polystyrene ua npuas ncauj molder nyob rau hauv Suav teb, kuj txhawb kev pab customized nrog luv nqi. Txais tos rau kev lag luam wholesale zoo polystyrene ua npuas ncauj molder rau muag ntawm no los ntawm peb lub hoobkas. Tiv tauj peb rau pricelist.
Kev Ruaj Ntseg Ua Haujlwm Polystyrene Ua Npuas Ncauj Ua Npuas Ncauj Nrog Lub Tshuab Nqus Tsev rau Cov Khoom Siv Zoo EPS tsim
Precision EPS tsim nrog Advanced Vacuum Technology: Kev Ua Haujlwm ruaj khov Polystyrene Ua Npuas Ncauj Ua Npuas Ncauj yog ib qho kev ua haujlwm siab - kev ua haujlwm zoo tsim rau cov tuam txhab uas xav tau qhov tsis zoo thiab sib xws. Los ntawm kev sib koom ua ke ntawm kev lag luam - qib nqus tshuab nrog precision molding tshuab, lub tshuab no yog qhov kev xaiv zoo tshaj plaws rau kev tsim cov khoom siv high- ceev, complex EPS.
Technical Specifications: Advanced EPS Puab Moulding System
High -Qhov Kev Ntsuas Thermoforming rau Ntim, Kev Tsim Kho, thiab Cov Khoom Siv Hauv Tsev
Cov txheej txheem no yog tsim los rau kev ua haujlwm siab - ua tau zoo ntawm cov khoom zoo li Expandable Polystyrene (EPS). Los ntawm kev koom ua ke Tier-1 cov khoom siv thoob ntiaj teb nrog lub siab -rigidity modular ncej, nws muab kev lag luam ua qhov raug thiab thermal stability.
1. Kev tsim kho vaj tse & lub moj khaum
- Modular Heavy-Lub cev ua haujlwm:Tsim los ntawm siab - lub zog, muaj zog steel phaj. Cov txheej txheem vuam tshwj xeeb yields 30% nce hauv cov qauv rigidity piv rau cov qauv thav duab, tshem tawm cov neeg kho tshuab qaug zog thaum lub sij hawm siab - siab.
- Moulding Interface:Features ceev - tso tawm sab saum toj txav tau - qws bracket nrog hloov pauv hloov pauv ntau yam ntawm 0-100mm, tso cai rau kev hloov pwm sai thiab ntau yam khoom qhov tob.
2. Siab -Kev Ua Haujlwm Zoo & Kev Tswj Xyuas Kev Mus Los
- Encoding Technology:Siv Korean Autonics E40S6 Series encoder (1000 pulses/rev).
- Positional Accuracy:Muab qhov nrawm tsawg dua lossis sib npaug rau 0.1ms lub sijhawm teb thiab qhov chaw tso siab ntawm ± 0.05mm, ua kom muaj kev sib haum xeeb zoo rau cov geometry nyuaj.
3. Advanced Thermal & Fluid Management
- Dual -Valve Steam Logic:Ua haujlwm ntawm lub siab ruaj khov ntawm 0.3-0.6MPa nrog qhov hloov pauv tsawg (± 0.02MPa). Qhov kev teeb tsa no ua rau 15% kev txhim kho hauv thermal efficiency thiab superior hlaws fusion.
- High -Tub Hydraulic System:Nruab nrog FKM (Viton) cov ntsaws ruaj ruaj, lub kaw lus raug ntsuas rau kev ua haujlwm tas li ntawm 120 degree. Nws tuav lub siab zoo ib yam ntawm 0.8–1.2MPa nrog kev lees paub xoom- leakage profile.
- Precision Valve Suite:Kev koom ua ke German Burkert 6213 solenoid li qub (ultra- nrawm Tsawg dua lossis sib npaug li 50ms teb) thiab Japanese SMC pom (5μm raug) kom ntseeg tau tias pneumatic purity thiab tswj tam sim ntawd.
4. Kev pub noj ntse & kev tuav khoom
- Siab -Ntaus Hopper:50L kab rov tav stainless hlau thoob featuring plaub qhov chaw nres nkoj ywj pheej rau kev faib khoom sib xws.
- Smart Level Sensing:Siv lub capacitive sensor (0–500mm) rau tiag tiag -lub sij hawm ntsuas ntim.
- Exhaust Optimization:Nruab nrog tus kheej - kaw qhov tso pa tawm pub phom uas tshem tawm rov qab- lub zog thaum lub sij hawm sau lub voj voog, kom ntseeg tau qhov siab tshaj plaws thaiv qhov ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom.
Nta
- Kev ntxhov siab-Tshem tawm & Tsis yog-Deforming Ncej
- Siab -Structure muaj zog
- Superior Anti-Kev tiv thaiv corrosion
- Multi-Level Safety System
- 20% Txuag Chav
- Tag Nrho Tsis Siv Neeg PLC Tswj
Kev piav qhia zoo
Ntau lawm
Nws muaj kev ua tau zoo ntau lawm thiab tuaj yeem tsim tau ntau ntawm EPS ua npuas ncauj ntawv hauv lub sijhawm luv luv kom tau raws li qhov loj - nplai kev lag luam.
01
Kev ruaj ntseg zoo
Cov txheej txheem ntau lawm thiab kev tswj xyuas meej kom ruaj khov ntawm cov ntawv txheeb. Cov qauv ntawm tes yog qhov sib xws thiab zoo, thiab cov ntsuas kev ua tau zoo xws li qhov ceev thiab lub zog ntawm cov ntawv ua tau raws li cov qauv siab.
02
Kev txuag hluav taws xob thiab txo kev siv hluav taws xob
Kev txais yuav lub zog-txuag cua sov thiab foaming technologies zoo txo cov kev siv hluav taws xob thiab cov nqi tsim khoom, thiab kuj ua raws li txoj kev loj hlob ntawm kev tiv thaiv ib puag ncig thiab kev txuag hluav taws xob.
03
Siab Flexibility
Raws li kev xav tau ntawm cov neeg siv khoom sib txawv, cov khoom lag luam tuaj yeem hloov kho los tsim EPS ua npuas ncauj cov ntawv sib txawv, qhov ntom ntom, thiab cov lus qhia tshwj xeeb kom hloov mus rau ntau yam kev thov.
04
Kev ua haujlwm yooj yim
Kev ua haujlwm sib txuas ntawm cov cuab yeej siv yog tus neeg siv - tus phooj ywg, ua kom yooj yim rau cov neeg ua haujlwm khiav lag luam thiab tswj xyuas. Nws txo cov kev xav tau rau cov neeg ua haujlwm thiab txhim kho qhov yooj yim ntawm kev tsim khoom.
05
Technical Specifications
|
Nqe lus piav qhia |
chav tsev |
PEB 1210 |
PEB 1412 |
PEB 1513 |
PEB 1750 |
PEB 1816 |
PEB 2216 |
|
|
Pwm qhov ntev |
mm |
1200X1000 |
1400X1200 |
1500X1300 |
1750X1450 |
1800X1600 |
2200X1600 |
|
|
Lub qhov rai qhov loj |
mm |
1100X900 |
1250X1100 |
1400X1200 |
1650X1350 |
1700X1450 |
2050X1450 |
|
|
Siv tau zoo molding cheeb tsam |
mm |
1000X800 |
1200X1000 |
1300X1100 |
1550X1250 |
1600X1350 |
1950X1350 |
|
|
Cov khoom siab tshaj plaws |
mm |
400 |
400 |
400 |
400 |
400 |
400 |
|
|
|
Chav kav dej |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Chav System |
Pwm interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Ua hauj lwm siab |
Kg / cm2 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
3~6 |
|
|
yeeb nkab interface |
DN |
65 |
65 |
65 |
80 |
80 |
80 |
|
qhov system |
Ua hauj lwm siab |
Kg / cm2 |
4-5 |
4-5 |
4-5 |
4-5 |
4-5 |
4-5 |
|
Dej Txias System |
yeeb nkab interface |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
Ua hauj lwm siab |
Kg / cm2 |
3-4 |
3-4 |
3-4 |
3-4 |
3-4 |
3-4 |
|
|
Pwm interface |
DN |
25X6 |
25X8 |
25X8 |
25X8 |
25X8 |
25X8 |
|
|
Cov dej phwj tuaj |
Nqus interface |
DN |
100 |
100 |
100 |
125 |
125 |
125 |
|
Sib tov, tshem tawm thiab tshem tawm cov dej |
DN |
80 |
80 |
80 |
100 |
100 |
100 |
|
|
Cov kav dej phwj interface |
DN |
100 |
100 |
100 |
100 |
125 |
125 |
|
|
Pwm interface |
DN |
40X6 |
40X8 |
40X8 |
40X8 |
40X8 |
40X8 |
|
|
Hydraulic system |
Roj twj tso kua mis lub cev muaj zog |
Kw |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
|
|
Roj twj tso kua mis loj |
L / min |
23+53 |
25+75 |
25+75 |
25+94 |
25+94 |
31+116 |
|
|
clamping zog |
T |
24 |
24 |
24 |
38 |
38 |
42 |
|
|
Qhib thiab kaw pwm roj lub tog raj kheej |
mm |
100X1360/2 |
100X1360/2 |
100X1360/2 |
125X1360/2 |
125X1360/2 |
150X1360/2 |
|
|
Demoulding roj kheej kheej |
mm |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
50X30X450 |
70X40X450 |
|
|
Lub thoob muaj peev xwm |
kub |
0.15 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
qhov system |
Noj ntxuam |
Kw |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
|
|
Qhov hluav taws xob |
tus kheej |
32 |
50 |
50 |
50 |
50 |
64 |
|
Tib lub zog |
Kw |
7 |
7.7 |
7.7 |
9.7 |
9.7 |
13.2 |
|
|
Sab nraud qhov ntev (dav raws li tshuab taw) |
LXWXH |
5250X1750X3785 |
5250X1950X3785 |
5250X2050X3885 |
5430X2250X4000 |
5450X2230X4000 |
5632X2620X4100 |
|
|
Ib lub tshuab hnyav |
T |
4.5 |
5 |
6.5 |
7.5 |
8.5 |
9 |
|
Cov khoom siv
Tsev Insulation Field
Ntim Kev Lag Luam
Kev Tshaj Tawm thiab Kho Kom Zoo Nkauj Kev Lag Luam
Cold Chain Logistics Field
Lwm yam teb
Vim Li Cas Xaiv Peb
Cov ntawv pov thawj thiab khoom plig
qhov kawg saib ntawm qhov project
Exhibition nrog cov neeg siv khoom thoob ntiaj teb
Peb Qhov Kev Pabcuam
Dongshan EPS Tshuab Kev Pabcuam Kev Ua Haujlwm Ua Ntej - Muag, Hauv - Muag & Tom Qab - Kev Pabcuam Muag Khoom rau Ntiaj Teb EPS Manufacturers
Ua ntej-Kev muag khoom
Kev sab laj
Customized Solutions
Nqe lus & Kev Npaj Ua Haujlwm
Hauv -Kev muag khoom
Lub Hoobkas ncig saib
Kev taw qhia kev teeb tsa
Kev cob qhia ua haujlwm
Tom qab -Kev muag khoom
Kev pab txhawb nqa
Khoom Muag Khoom
Kev Pabcuam txawv tebchaw
Turnkey EPS Cov Kab Ntau Lawm layout tsim kev pabcuam:
Ntim thiab xa khoom
